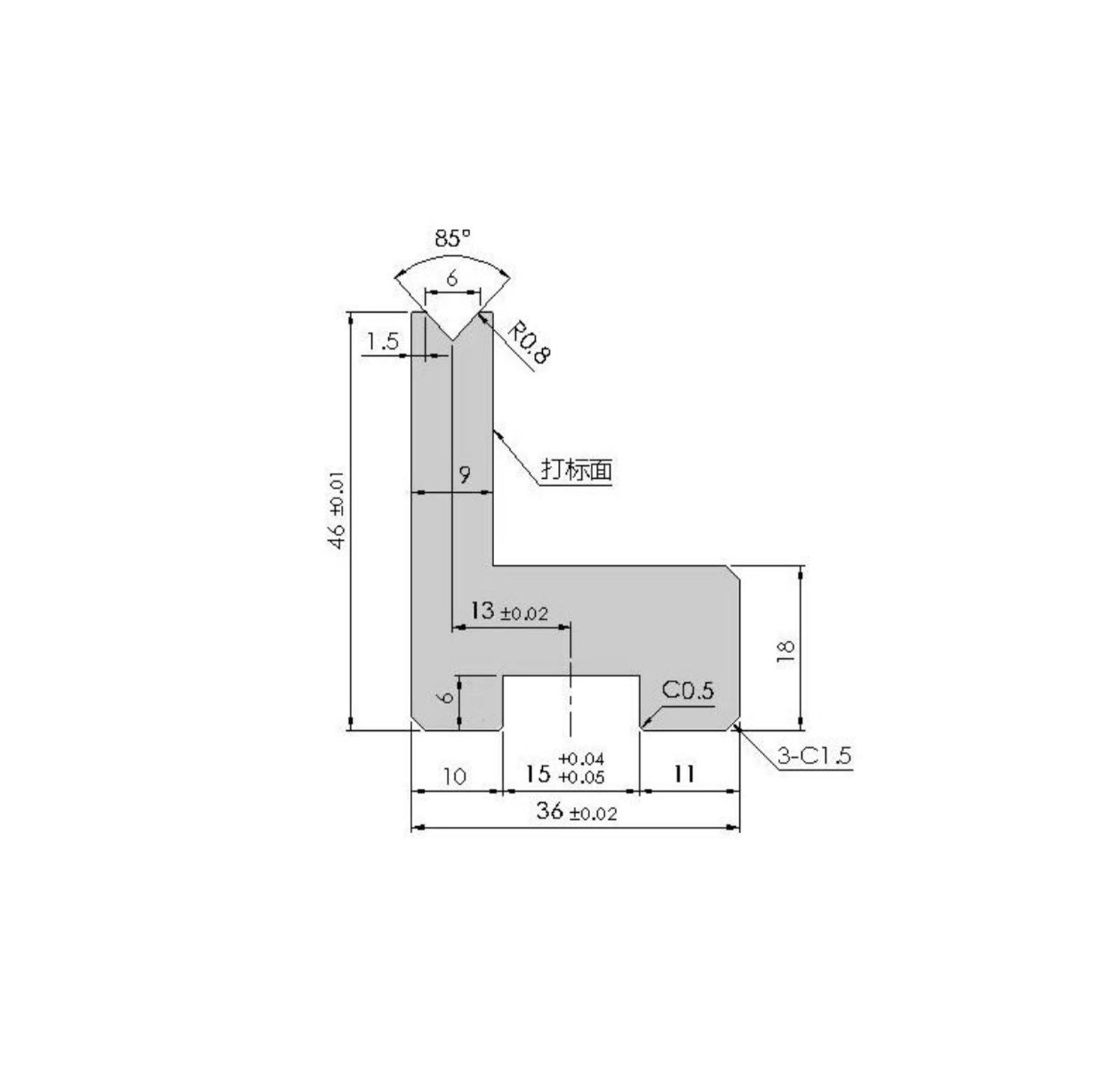

| Length (mm) |
415，835 |
| Size(mm) |
46*35 |
| Angle |
85 |
| Radius |
0 |
| Material |
42 CrMo4 tempered |
| Max T/m |
40 |
skills requirement:
1. For interchangeable docking in groups, the error at the interface should be ≤0.03mm.
2. The parallelism and verticality errors should be ≤0.03mm.
3. All sharp corners are chamfered C0.5/R0.5, 4. The groove R is smoothly transitioned.
4. Dimensional tolerances not noted shall be based on GB/T18/04-F level.
5. The symmetry tolerance shall be implemented according to GB-T1184-H level.
